起源の場所:
中国
ブランド名:
Joshining
証明:
GB
モデル番号:
MRFC-5000

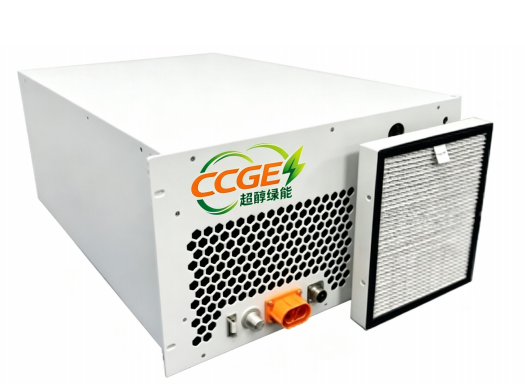

The Methanol Reforming Hydrogen Fuel Cell System is an innovative, highly integrated energy conversion device that transforms liquid fuel directly into clean electrical energy. The system utilizes a safe, unpressurized mixture of methanol and water (V/V=6:4) as its primary fuel source.

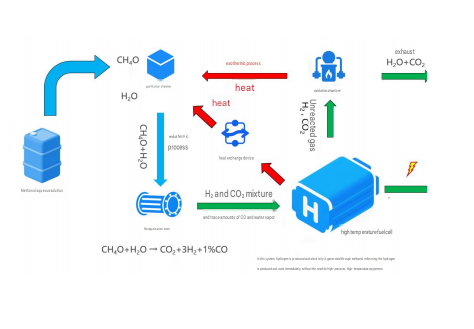

Inside the integrated reforming core, the liquid mixture undergoes catalytic steam reforming to generate a high-quality hydrogen-rich stream (H₂≥75%). This hydrogen is immediately fed into an advanced High-Temperature Proton Exchange Membrane (HT-PEM) fuel cell stack to generate reliable DC electricity via electrochemical reactions.
By replacing dangerous high-pressure gaseous hydrogen logistics with stable liquid methanol logistics, the system eliminates severe safety liabilities and strict transit regulatory hurdles of traditional hydrogen infrastructure. With its plug-and-play modular layout, it serves as a revolutionary continuous power supply for heavy-duty applications requiring long endurance and mobility.
| Technical Parameters | Specifications |
|---|---|
| Power Output | 1.5 - 5.0 kW |
| DC Voltage Output Range | 48 V / 320 - 650 V |
| System Efficiency | ≥ 46% (Ultra-High Energy Conversion) |
| Fuel Composition Required | Methanol & Water Premix Mixture V/V=6:4 |
| Operation Noise Level | < 65 dB (Ultra-Quiet Performance) |
| Ambient Operating Temperature | -20°C to 50°C (High Weather Resilience) |
| Dimensions L * W * H | 690 * 453 * 266 mm |
| System Net Weight | 65 kg |
| Enclosure Volume | 83 L |
Engineered with an advanced thermal integration circuit, the system dynamically recycles tail-gas and residual heat from the cell stack back into the vaporization process. This achieves exceptional energy efficiency of over 46%, significantly outperforming traditional diesel internal combustion generators.
Unlike conventional fuel cells that demand bulky, high-pressure hydrogen storage tanks, the system generates hydrogen on-demand at low pressure. There is no risk of high-pressure explosion, making it fully compliant with strict safety codes for indoor and urban deployments.
As a green hydrogen energy conversion solution, the primary byproduct is pure water vapor (H₂O). It guarantees zero emissions of harmful nitrogen oxides or particulate matter, helping your enterprise comply with strict ESG regulations.
Weighing only 65 kg with a compact 83L volume, the modular chassis supports hot-swapping and seamless multi-unit clustering to scale power up to tens of kilowatts, providing ultimate system reliability and simple maintenance.
