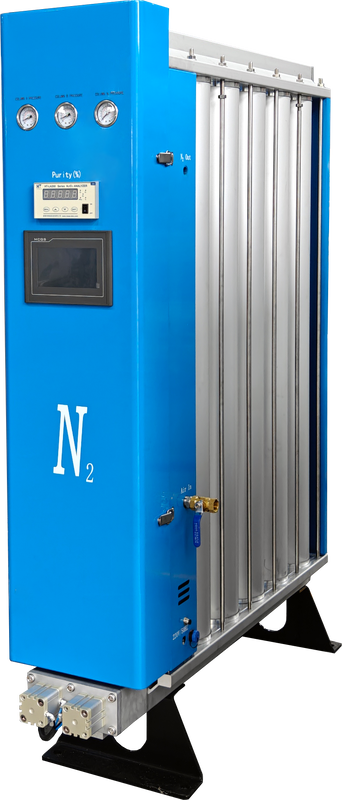

EPB-40MZ Modular PSA Nitrogen Generator 40Nm3/h 98% Purity with Energy Saving VP Control

The EPSEA EPB-40MZ is a modular Pressure Swing Adsorption (PSA) nitrogen generator engineered for maximum energy efficiency. With a class-leading 4.2:1 air-to-nitrogen ratio at 99.99% purity, it consumes 15% less compressed air than conventional twin-tower systems (5:1 ratio), directly reducing operational energy costs.

• Nitrogen Flow: 40 Nm³/h
• Nitrogen Purity: 98% (up to 99.999%)
• Air Demand: 1.2 Nm³/min
• Adsorption Pressure: 0.7 MPa
• Nitrogen Dew Point: -40°C to -70°C
• Cavity Material: 6063-T5 Aluminum Alloy
• Control System: PLC + HMI Touch Screen
• Dimensions: 400 * 1175 * 1810 mm
• Weight: 338 kg
• Power Supply: 220V/380V 50Hz/60Hz

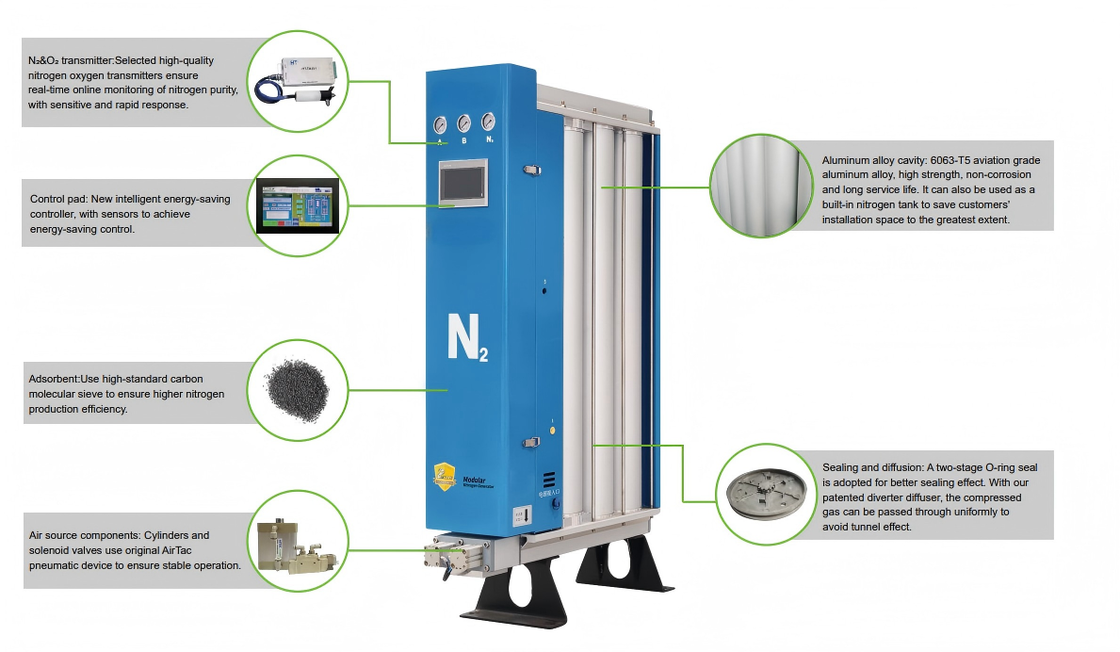

The modular aluminum alloy cavity design eliminates internal corrosion risks, extending service life beyond 20 years. Unlike traditional pressure vessel designs, the module requires no annual pressure vessel inspection, saving both time and compliance costs. Integrated high-resolution HMI provides real-time monitoring of nitrogen pressure, purity, flow rate, and system status with automatic unqualified nitrogen evacuation.
